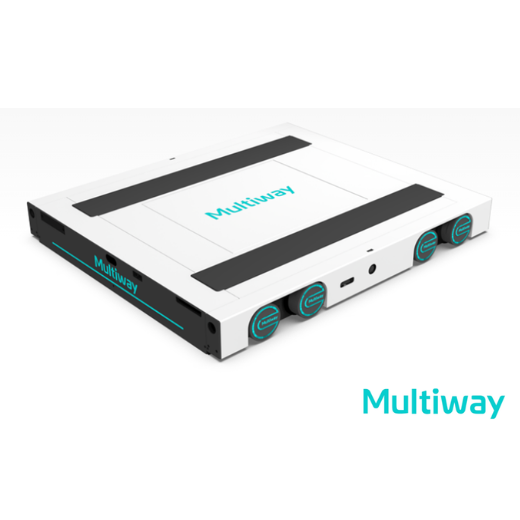

Four-way Shuttle MW-Z15

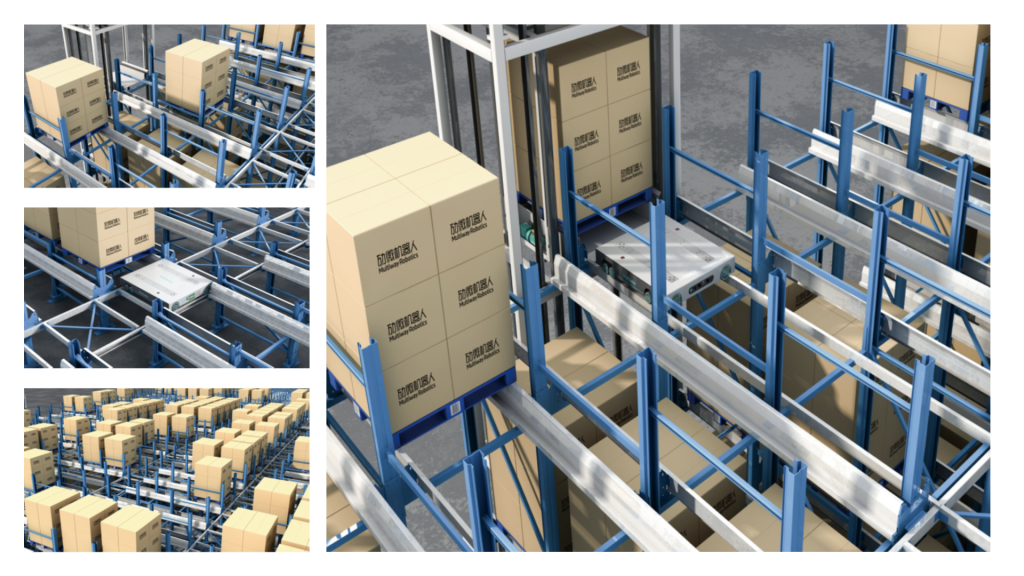

The intelligent four-way shuttle is a warehousing robotic equipment developed for the intensive storage of stereoscopicwarehouse. It can operate in four directions automatically and has cluster scheduling and automatic charging functions. ItIs able to cooperate with other equipment such as elevators and conveyor lines. It can combine with RCS, WCs, WMS andother software systems to be used in a fully automatic stereoscopic warehouse, which is applicable in dense storagescenarios in industries such as food, medicine, automobiles, and new energy.

Our complete portfolio of Aerial Work Platforms offers a wide range of innovative lifting solutions designed to make maintenance operations safer, smarter, and more efficient. Whether for warehouses, commercial buildings, or sports arenas, our equipment delivers outstanding performance, maximum reliability, and unmatched versatility for every elevated task.

Rated Load(Kg)  :1000

Product Spesification

CategoryParameterSpesifikasi / Nilai
Basic ParameterModelZ15
Dimensions1300x980x136mm

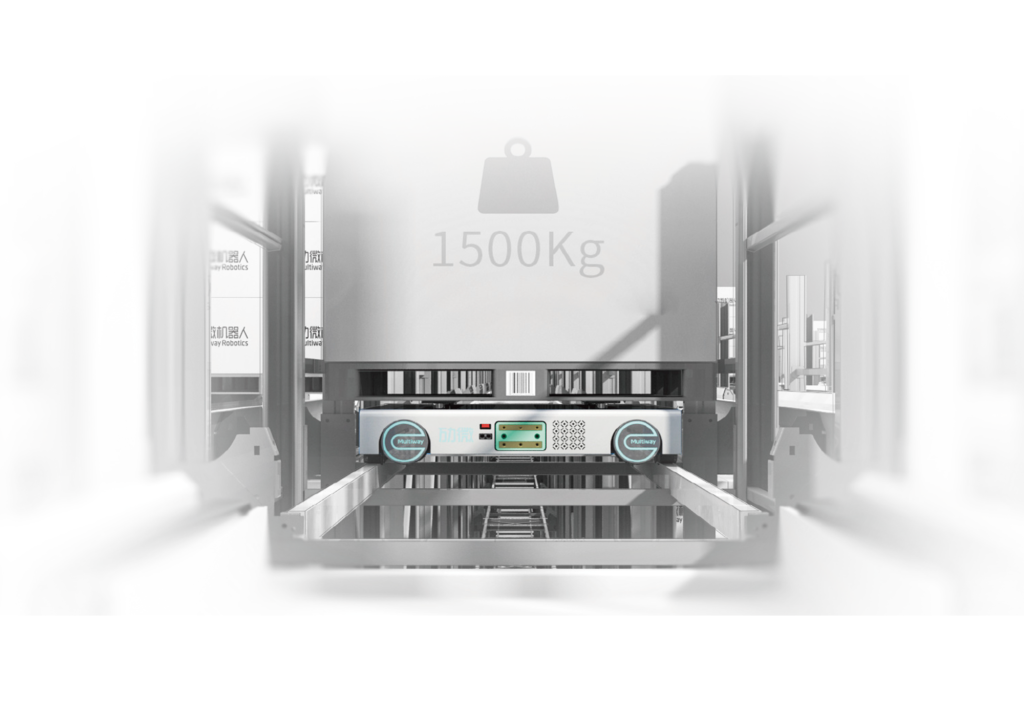

Rated Load1500kg
Pallet Width1200-1300mm
Pallet Height1000-1300mm
Jacking Height42mm
Weight420kg
Temp. Environment-5°C~45°C
Movement SpecificationsControl ModeManual/Auto
Driving FeaturesFour-way
Jacking MethodHydraulic Lifting (Mechanical Lifting)
Drive MethodHydraulic Drive (Servo Drive)
Max Driving Speed1.5m/s
Positioning Accuracy±2mm
Jacking Time4s
Motion Noise Level (>1m)≤75dB
Battery SpecificationsBattery Type (Standard)Lithium Iron Phosphate
Standard Capacity48V/40Ah
Run time6~8h
Charging ModeAuto/Manual
Safety ProtectionPositioning Fault Protection
Component Fault Protection
Anti-Collision Detection
