AMR
MW-C10

Multiway Robotics’ natural navigation dual differential drive AMR can automate materialtransportation, improve intralogistics efficiency, and free employees from repetitive anddangerous work, thereby ensuring work safety and efficiency and reducing corporate costs.

Rated Load（Kg）  ：1000

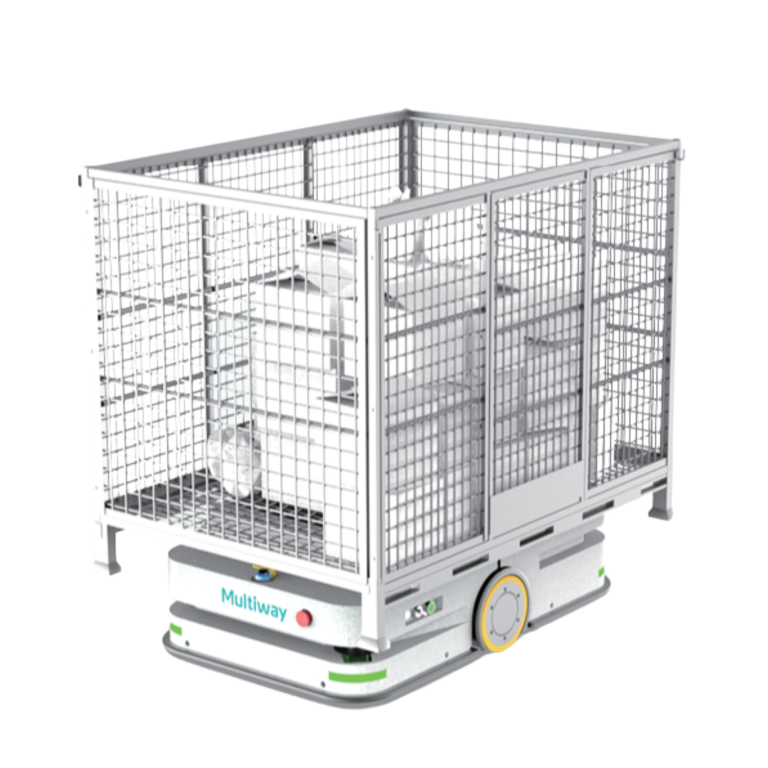

Upward uplift mechanism

The AMR (Autonomous Mobile Robot) moves under the cargo, lifts the entire pallet of goods by raising its top, and then transports it. The total weight of the goods and the carrier does not exceed the load capacity. Lifting and carrying in this manner allows for more flexible handling of transportation tasks, offering significant advantages in narrow aisle and small spaces.

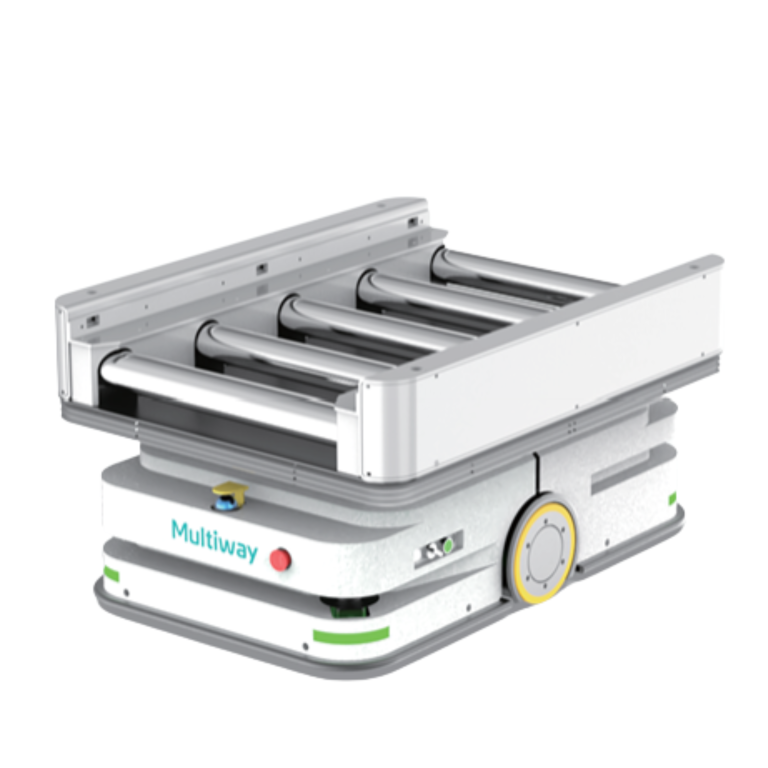

Conveyor Agency

The AMR (Autonomous Mobile Robot) can carry a conveyor belt or rollers, which allows it to deliver goods directly to the production line, achieving automatic loading and unloading. This can solve the problem of goods being too heavy to be moved by manual labor, thereby realizing production automation and improving production efficiency.

Product Spesification

Product NameDual Differential AMR
ModelMW-C05MW-C10
LiDAR Navigation●●
NavigationSky Navigation○○
Mixed Navigation○○
CommunicationWi-Fi/5G/Optical CommunicationSupportSupport
Rated Load (kg)5001000
Dimensions LxWxH (mm)930 x 730 x 2741150 x 820 x 280
Basic ParameterCross-Groove Capability (mm)≤30≤10
Climbing Capacity (mm)≤2°≤3°
Weight (kg)260350
Carrier TypeLifting Mechanism●●
Conveyor Mechanism○○
Driving FeaturesForward, Reverse, Arc, SpinForward, Reverse, Arc, Spin
Maximum Lifting Height (mm)7070
Movement SpecificationsTravel Speed (m/s)1.51.6
Stop Angle (°)±1±1
Position Accuracy (mm)±10±10
Auto/Manual●●
Path Deviation Protection●●
Component Fault Protection●●
Backward Bottom Obstacle Avoidance●●
Safety ProtectionStereo Obstacle Avoidance●●
Safety Bumper●●
Emergency Stop Button●●
Sound & Light Warning●●
HMI--
Safety SpesificationsBattery Wtandard Capacity (Ah)4050
Run Time (h)6,86,8
Cargo inspectionCorrection Detection○○
Barcode Recognition○○
